Hi Guys

After finishing all 80cc Mini bikes from 1980, I picked up an RM80D 1983 first water cooled from craigslist a couple of months ago and I been working on that mini beauty since then.
To be honest, when I bought I knew it was in bad shape, but I never thought it was so rough, even the guy I bought it from New Jersey, for who knows the reason after I got it, never replied me again when i send him a couple of pictures of the progress as he asked me for!

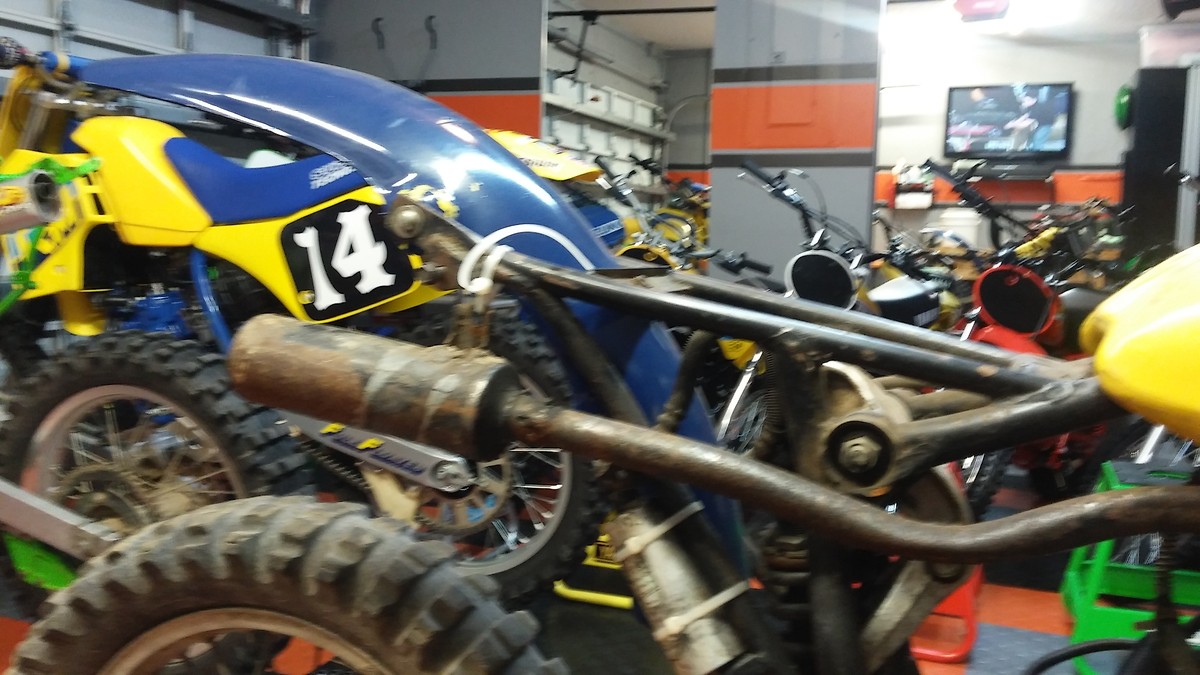

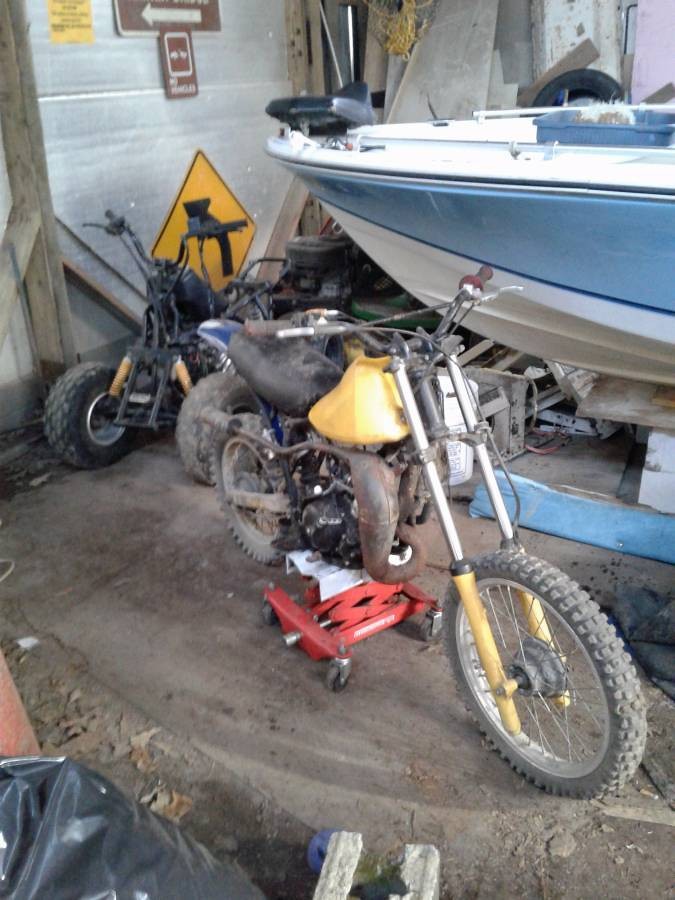

I will be posting some pictures of the before and some of the progress





water



C50_150_1435329764 macolmedo Quote
7/12/2017 4:09 PM

now some pictures of the progress

















C50_150_1435329764 macolmedo Quote
7/12/2017 4:23 PM

Some more



















C50_150_1435329764 macolmedo Quote
7/12/2017 4:35 PM













C50_s1200_kurtcaselli_cudby_032_1384836216 Sully Quote
7/12/2017 4:36 PM

That's some damn good looking progress you're making.

Is that bondo on the pipe in the first set of pictures? I guess that's one way to take care of dents...

C50_150_1435329764 macolmedo Quote
7/12/2017 4:46 PM








C50_150_1435329764 macolmedo Quote
7/12/2017 4:54 PM








C50_jeh_electro_1977_79_1459736185 Mini Elsinore Quote
7/12/2017 4:55 PM

That's gonna be sweet.

"Show me a guy who is afraid to look bad, and I'll show you a guy who can be beat everytime."
-Lou Brock

C50_150_1435329764 macolmedo Quote
7/12/2017 5:02 PM

Set of Dunlop k690 for correct era tires

C50_150_1435329764 macolmedo Quote
7/12/2017 5:07 PM

I got this used shroud from ebay and I been sanding and sanding

C50_150_1435329764 macolmedo Quote
7/12/2017 5:13 PM

getting there but not yet
it needs more sanding and polish after

C50 The Sneak Quote
7/12/2017 7:28 PM

Even more impressive than the 1980 bikes. Just amazing. I wish I had your abilities, focus, and work space!

C50_dick_trickle Dick Trickle Quote
7/13/2017 9:06 AM

Outstanding work as usual. I cannot believe the level of detail you go into. I am about to restore a yz125g 1980 to Oem spec and need some input into how you get such a great finish on your parts. Perhaps you can explain how you get the cases, and metal parts to such a high standard macalmedo.
Cheers,

C50_250r_1499452557 Mr. Sandman Quote
7/13/2017 9:56 AM
Dick Trickle wrote:

Outstanding work as usual. ...more

Beautiful work and bike. x2 on the comments above. The carb looks great...is it new or restored/refinished via all of your chromate dips? Where did you get the warning labels and manufacturer label on the frame down tube? I'm in the process of restoring a '78 RM125 and hope it comes out a nice as this little RM. Thanks!

C50_150_1435329764 macolmedo Quote
7/13/2017 12:54 PM
Dick Trickle wrote:

Outstanding work as usual. ...more

Hi, my friend!

How is your kid liking the rm80 1979 you restored for him?
Going back to the engine cases, i will give u the details
The first step I do is take it to the powder coat guy to get them sandblast and I will take it back home to inspect them
remember they are aluminum so they won't rust
The second step after inspection will be, removing all scratches and big marks with a Dremel sanding drum 320 grit and then smooth them out with a Dremel sanding drum 600 grit, after that, I will use a scrubber wheel that I bought from Caswell Plating and I do a light pass for final step( don't apply to much pressure on the scrubber because it worn out really quick)
After that it goes back to the powder coat shop to get sandblast again and paint
Metal Parts will be the same method for light details, for heavy details you will have to fill them up with JB Weld the original version

Regards
Martin

C50_150_1435329764 macolmedo Quote
7/13/2017 1:10 PM
Dick Trickle wrote:

Outstanding work as usual. ...more

Mr. Sandman wrote:

Beautiful work and bike. ...more

Hi

The carb is the original and I restored them all the time
The process will be:
Remove all dirt and grease from body parts(not plastic parts or seals) with gasoline first
Second will be dipping them 30 minutes in a carb cleaner solution
Third will be zinc plate and chromate with correct colors all metal parts, also change all rubber seals and gaskets
The last step will be using the scrubber wheel from Caswell to remove all the oxidation from the aluminum body parts and from all brass parts(all jets and other parts)
All my decals are made after been measured and traced from the originals by bdesigns.ca, his name is Brian
He is the best for my OCD problem

Good Luck with your project!

C50_150_1435329764 macolmedo Quote
7/13/2017 1:30 PM

Example of carburetor before scrubber wheel and after



C50_image006 PN27416 Quote
7/13/2017 1:38 PM
C50_626985978_1207758470 PD441 Quote
7/14/2017 7:29 AM

Macolmedo, awesome build!! Please let me know if you got my message.

The PD441 of Motodrive

C50_150_1435329764 macolmedo Quote
7/14/2017 9:11 AM
PD441 wrote:

Macolmedo, awesome build!! ...more

Hi Paul

I did and I replied with my email address
Please double check

C50_626985978_1207758470 PD441 Quote
7/14/2017 9:29 AM
PD441 wrote:

Macolmedo, awesome build!! ...more

macolmedo wrote:

Hi Paul

I did and I replied ...more

Hmmm....I didn't get it. I sent you another message. Hopefully it'll work this way.

The PD441 of Motodrive

C50_rm125avatar PitRacer Quote
7/14/2017 12:04 PM

Really looks great. So you are plating this stuff yourself with one of those kits from Caswell?

C50_dick_trickle Dick Trickle Quote
7/14/2017 7:52 PM
Dick Trickle wrote:

Outstanding work as usual. ...more

macolmedo wrote:

Hi, my friend!

How is your ...more

Boy loves his rm80n,but we are still having problems getting it to run correctly.
Can you post up a link of the scrubber you use from Caswells Martin. I thought you were vapour blasting your parts they were coming up so new.
In the pic I am posting up, the Oem Kickstarter and rear brake pedal and carb boot band have a metal finish that has a slightly greenish hue. Have you seen that process?
Keep up the good work,
Cheers


C50_dick_trickle Dick Trickle Quote
7/16/2017 8:34 AM

I need to get myself a zinc plating kit like yours Martin. The greenish Color above is olive drab chromate. I also need silver clear and yellow. Let us know what kit you used.
Cheers,

C50_150_1435329764 macolmedo Quote
7/16/2017 4:42 PM
PitRacer wrote:

Really looks great. So you ...more

Thanks for the comment
yes I'm using the copy cad and zinc kit from Caswell

C50_150_1435329764 macolmedo Quote
7/16/2017 5:00 PM
Dick Trickle wrote:

Outstanding work as usual. ...more

macolmedo wrote:

Hi, my friend!

How is your ...more

Dick Trickle wrote:

Boy loves his rm80n,but we ...more

Hi
Sorry for the delay, I am posting the picture of the scrubber wheel, the system from Caswell that I use is copy cad and zinc
If you check the Kickstarter and fork caps, etc from the rm80 1983 that I am restoring you will see the color you are asking
I don't use the olive drab chromate, i just use the black chromate and I learned after practicing with timing dips to obtain the color I want, or either greenish or black
The other chromate colors I use after the zinc plating process is yellow and clear blue
Going back to vapor blasting, you comment that you thought I was doing that, I will tell you again, there is no blast that will take any scratches or gouges from your aluminum parts, before you paint, polish or use the scrubber wheel you need to sand all of that away, if not you will have a painted, polished or shiny part with all the imperfections named before

Regards
martin


C50_150_1435329764 macolmedo Quote
7/16/2017 5:28 PM

Hi Guys

I have been working on the cushion, linkage, and rear shock the last week
I am posting before and after pictures
I have to take the shock to charge with nitrogen before installing the new decal and then it will go on the bike
Hope you like them













C50_dick_trickle Dick Trickle Quote
7/17/2017 1:28 AM

I think better than when it rolled off the showroom floor.

C50_image_2.jpg_original_1469248225 Paul333 Quote
7/17/2017 3:26 AM

Incredible

C50_07_sera_natra_qual_1420378050 markit Quote
7/17/2017 9:58 PM

That is some top shelf work there.
