2007 CR125

JohnCharlesC
Edited Date/Time 2/10/2020 7:35pm

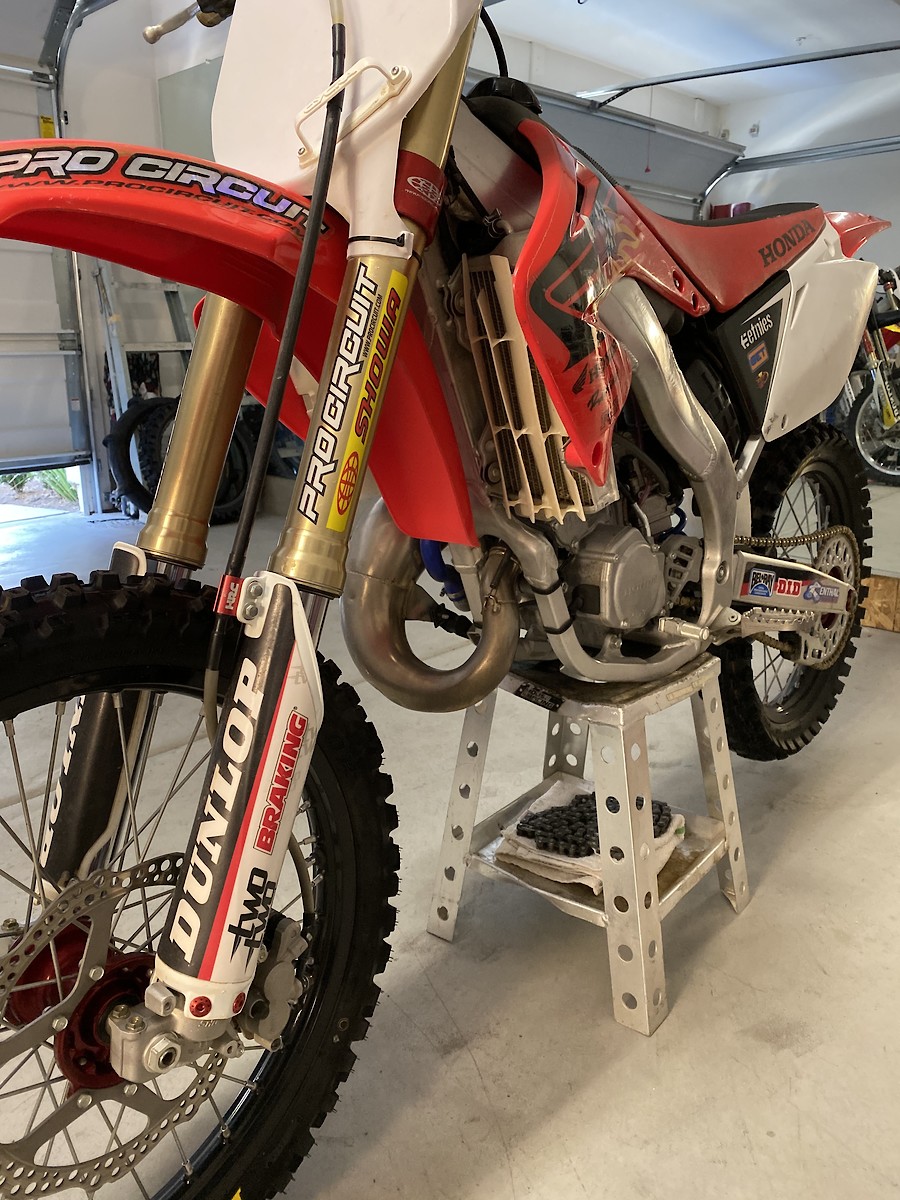

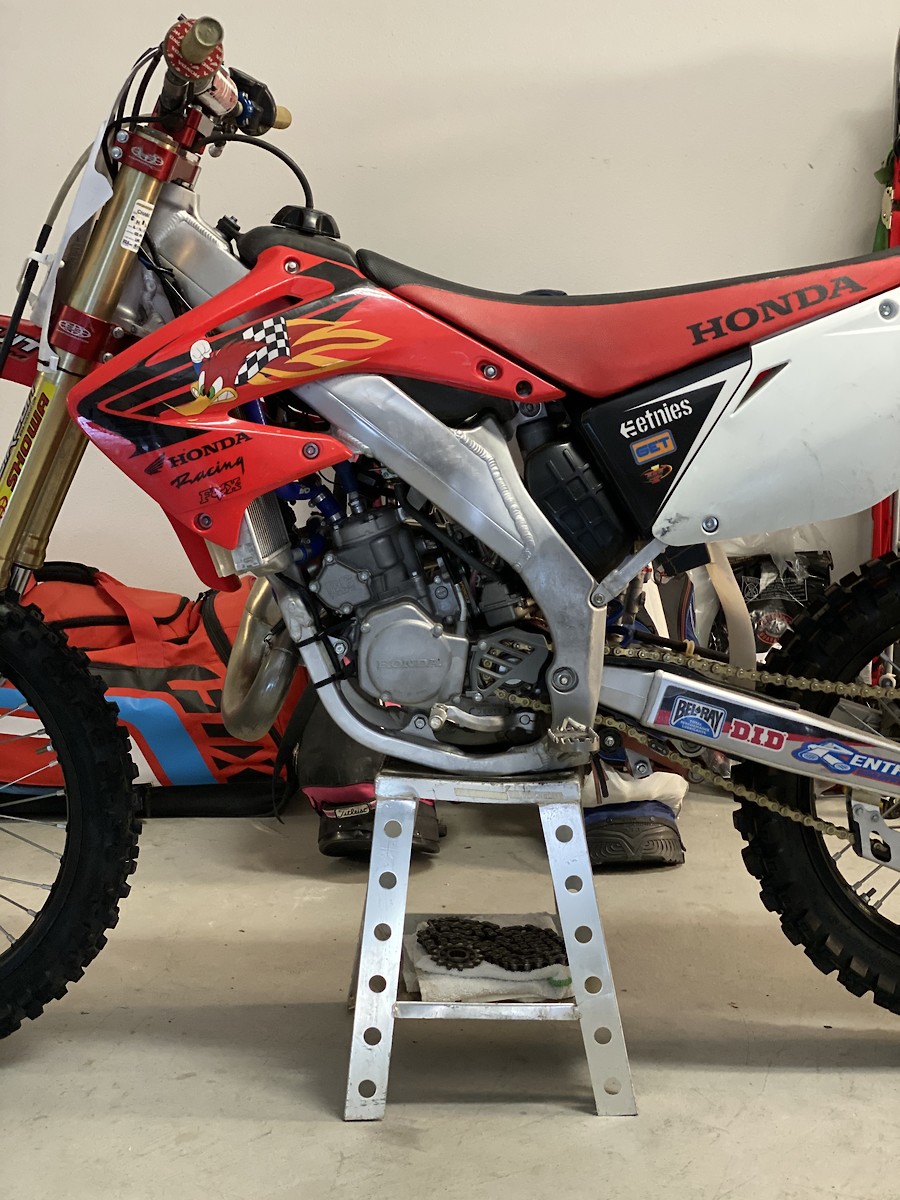

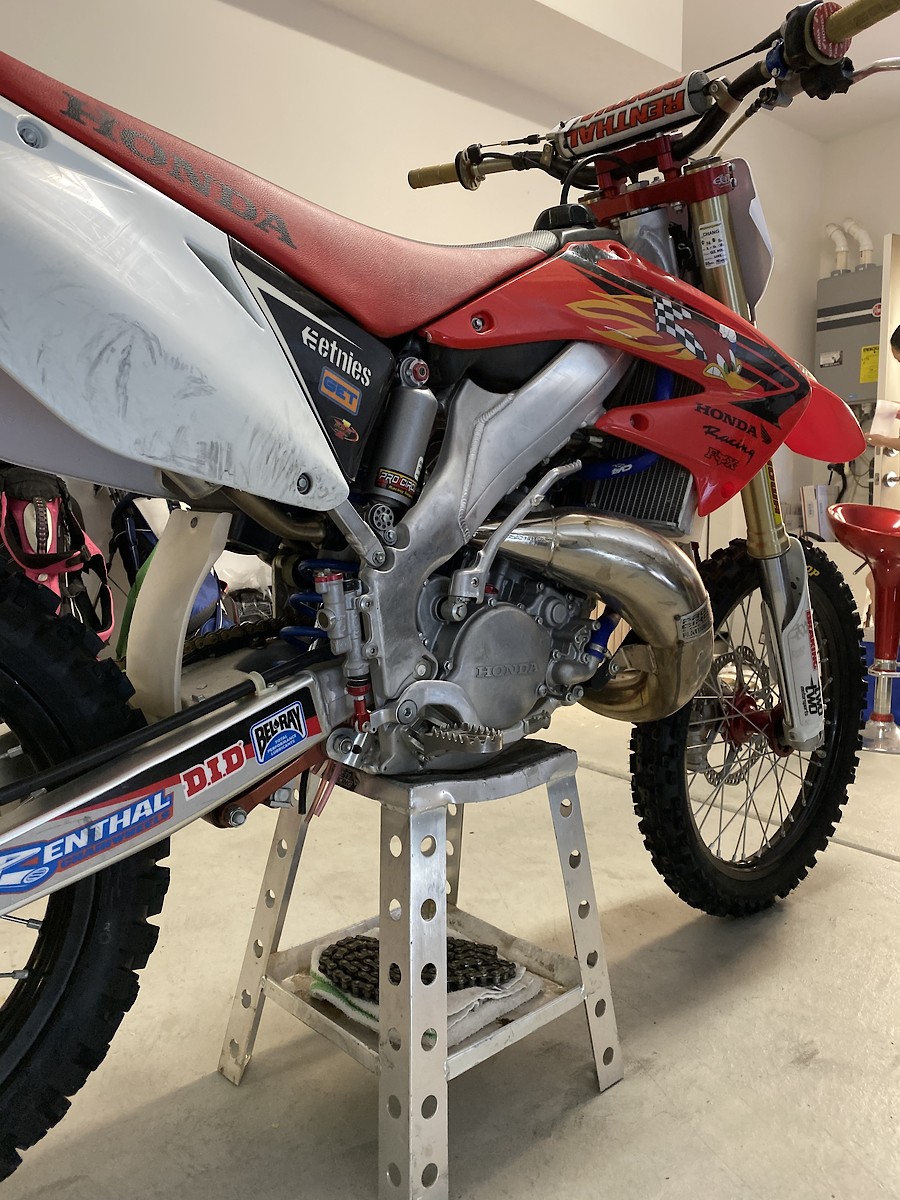

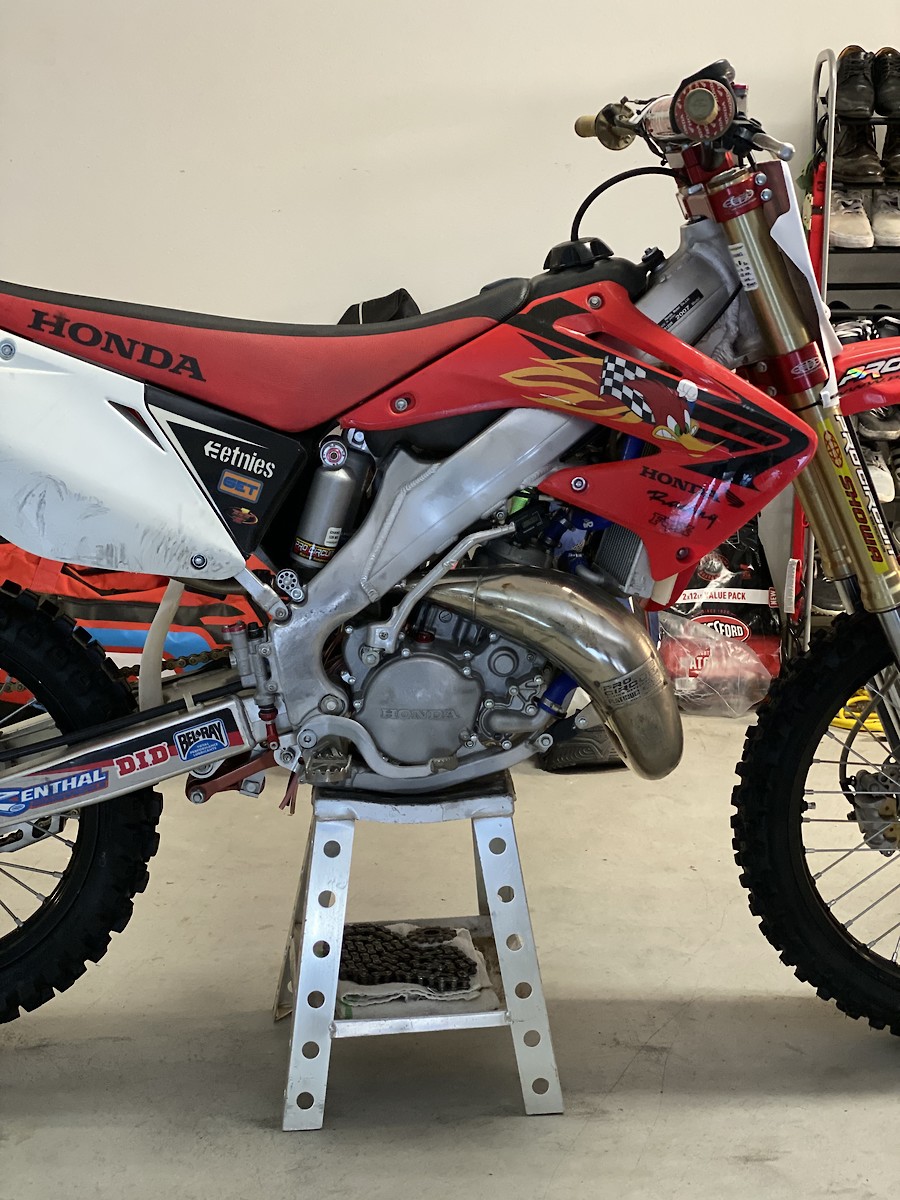

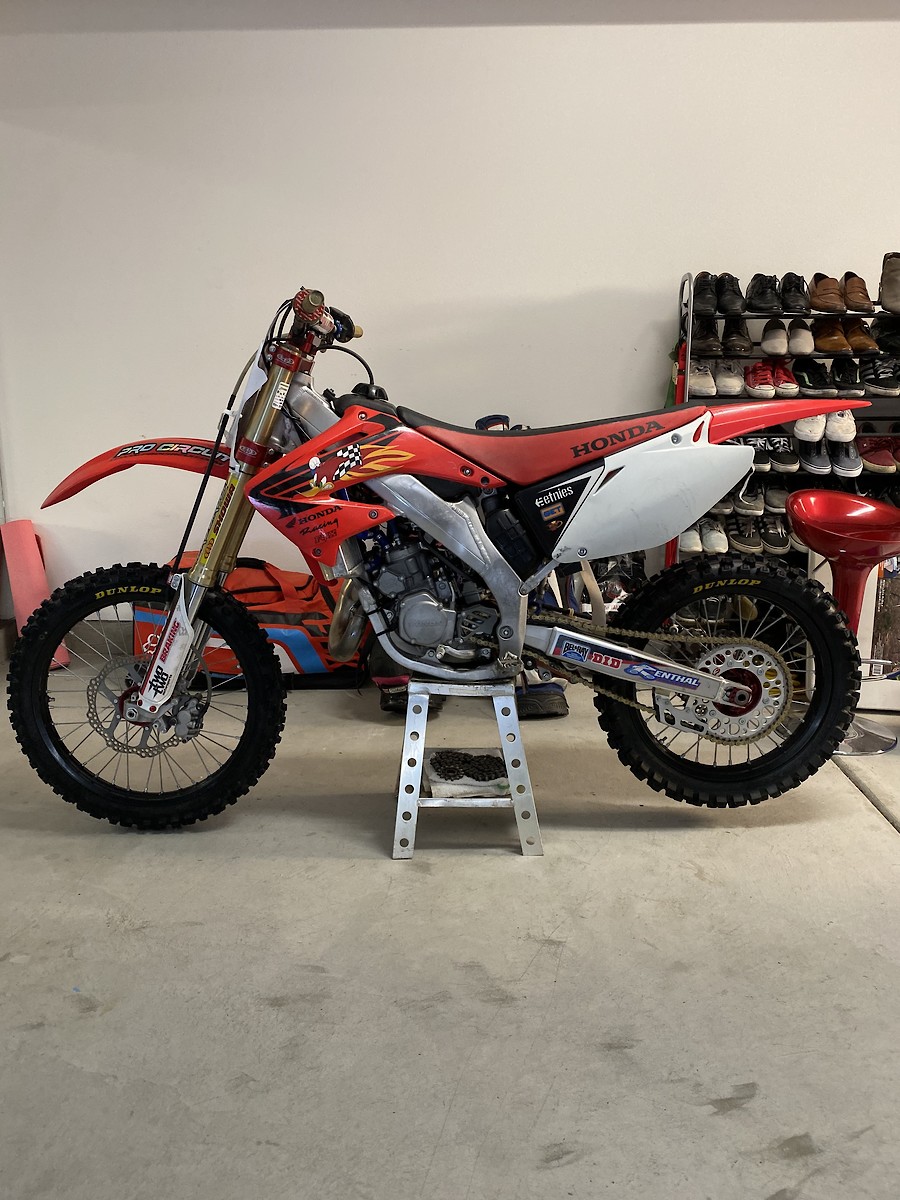

Bought this bike back in 2010 with less than 5hrs on it. All stock down to the grips and tires. Since then the bike "only" has 51hrs on it. Pro Circuit for Motor and Suspension and little bits of goodies sprinkled around. Haven't ridden the bike in about a year so I wanted to break it down and clean/detail everything. Debating if I should do a top end or not.. Has 30hrs on it since the engine work. Would you guys replace the top end? Currently as it sits. Break down coming soon.









4
|
slamdmini
Profile picture for user slamdmini
Posts
105
Joined
9/3/2006
Location
CA US
slamdmini 10/10/2019 4:22pm
10/10/2019 4:22pm
yes 100% do a top end. to me 30 hrs is a lot on a top end, plus they are cheap and easy to do. cant wait to see this thing done.
3
Jim in VA
Profile picture for user Jim in VA
Posts
297
Joined
3/4/2016
Location
Louisville, KY US
Jim in VA 10/10/2019 4:29pm
10/10/2019 4:29pm
slamdmini wrote:
yes 100% do a top end. to me 30 hrs is a lot on a top end, plus they are cheap and easy to do. cant...
yes 100% do a top end. to me 30 hrs is a lot on a top end, plus they are cheap and easy to do. cant wait to see this thing done.
I don’t know man. I’d personally save the money to buy some shoes.

Kidding aside, yeah it’s probably time, but depends on if it’s ridden on a track, putting around in the woods, etc. Probably could use a ring at minimum.
4
JohnCharlesC 10/12/2019 8:28pm
10/12/2019 8:28pm
Tearing it down..







I hate taking these things off, such a pain!!









Pieces all laid out. Some pieces were already cleaned when I took this pic.



Factory Connection linkage is definitely my favorite piece on the bike


One of the motor mounts still looks brand new.. wow



2
JohnCharlesC 10/12/2019 8:41pm
10/12/2019 8:41pm
slamdmini wrote:
yes 100% do a top end. to me 30 hrs is a lot on a top end, plus they are cheap and easy to do. cant...
yes 100% do a top end. to me 30 hrs is a lot on a top end, plus they are cheap and easy to do. cant wait to see this thing done.
Yea, thinking about it now it's probably best to do it. Since having to tear it back down later would suck.

The Shop

See All »
JohnCharlesC 10/13/2019 8:03pm
10/13/2019 8:03pm
Got the frame cleaned up as best as I could with the aluminum cleaner. Came out decent I think.

Before





After





6
Chance1216
Profile picture for user Chance1216
Posts
5286
Joined
4/1/2018
Location
Federal Way, WA US
Chance1216 10/13/2019 9:45pm
10/13/2019 9:45pm
I had the same marks on my frame as you from the radiator shrouds digging into the frame while riding. I forgot where I saw it but taking strips of Velcro with glue on one side really helps protect the frame. It'll eventually wear all the way through believe it or not. Here's a pic for reference. Can't wait to see more of your bike.
4
garagedog
Profile picture for user garagedog
Posts
841
Joined
4/23/2014
Location
Tulare, CA US
Fantasy
687th
garagedog 10/14/2019 12:09pm
10/14/2019 12:09pm
Yes, new piston kit for sure.
Check the ring gap and piston size on the old rings/piston and compare to what the manual says. If they are past the OEM specs, you know you went way past a service interval. Make sure the cylinder is not worn too much either.
1
JohnCharlesC 10/20/2019 7:03pm
10/20/2019 7:03pm Edited Date/Time 10/21/2019 11:24am
Cleaned up the frame again because I wasn’t really happy with it the first time. But now it’s looking clean! I love the sheen look.



Specbolt Nickel Wurks kit 👍🏻


Cleaned up the swingarm.

Before







After








Stock bolts vs Nickel Wurks bolts for swingarm







Some other bolts






Bolts on the triple clamps. Love how these look! Wonder if I can get new PC stickers..







6
Action69
Profile picture for user Action69
Posts
400
Joined
9/25/2018
Location
Howard Beach, NY US
Action69 10/20/2019 9:16pm
10/20/2019 9:16pm
Looking good,what product did you use to clean the aluminum?
JohnCharlesC 10/21/2019 11:08am
10/21/2019 11:08am
Action69 wrote:
Looking good,what product did you use to clean the aluminum?
I think any aluminum type cleaner should work but this is the one I used. Cleaned with soap and water first then the aluminum cleaner after. This last time only took about 10-15 mins of scrubbing with a medium steel wool pad. The first time I probably spent around 20-25mins, so didn’t take too long.

JohnCharlesC 10/22/2019 2:09pm
10/22/2019 2:09pm
They are all parts I have slowly acquired over the years! I still have a handful of stuff waiting to go on the bike once I put it all together.
H4L
Profile picture for user H4L
Posts
2499
Joined
3/18/2016
Location
CA US
H4L 10/22/2019 8:44pm
10/22/2019 8:44pm
Hey Charles. Looking good on the refurbish. Let me know if you decide to sell that tiddler.
1
gavinmgrant
Profile picture for user gavinmgrant
Posts
72
Joined
4/4/2018
Location
Goldsboro, NC US
gavinmgrant 10/23/2019 7:23am
10/23/2019 7:23am
What a beauty! I just sold my 06 cr125 a few months ago. One of the best turning bikes ive ever had. *sad face*
2
JohnCharlesC 10/24/2019 8:03pm
10/24/2019 8:03pm
Small Update. Got the carb and subframe cleaned up today.

Before... Probably needs new seals.




After. Feels so good when things are clean! haha






Subframe




2
Lightning78
Profile picture for user Lightning78
Posts
6313
Joined
12/12/2007
Location
Huntington Beach, CA US
Lightning78 10/24/2019 11:52pm
10/24/2019 11:52pm
Wow that is an incredibly large amount of work for your questionable top-end work to take it apart and frame it like that is a lot of work for a bike that clean it's your bike and I'm sure it will look incredible when done. Look forward to the finished product
JohnCharlesC 10/25/2019 12:50pm
10/25/2019 12:50pm
Lightning78 wrote:
Wow that is an incredibly large amount of work for your questionable top-end work to take it apart and frame it like that is a lot...
Wow that is an incredibly large amount of work for your questionable top-end work to take it apart and frame it like that is a lot of work for a bike that clean it's your bike and I'm sure it will look incredible when done. Look forward to the finished product
haha def a lot of work but enjoyable work! My plan (for now) is to clean/fix some things and leave it. I have another bike I am currently riding so this bike hardly gets ridden right now.
JohnCharlesC 1/12/2020 11:21pm
1/12/2020 11:21pm
Been trying to get this build finished but have been a little busy lately. Put the engine back in the frame w/o the top end (sounded/felt good last time I rode it), since I don't have any plans to ride this once it is finished.

Just going to install the parts I've had for a while and see what happens in the future. For now here are some pics.






My favorite piece





Specbolt bolts littered throughout the bike



Few OEM and few aftermarket plastics


TwinAir air filter cage


Full Hinson!


Carb booster pack 1000.. lol..







3

Pit Row

See All »
dylanv21
Profile picture for user dylanv21
Posts
414
Joined
10/3/2013
Location
Fresno, CA US
dylanv21 1/13/2020 9:30am
1/13/2020 9:30am
Need to get you a Hinson Clutch cover to compliment the full Hinson inside!
JohnCharlesC 1/13/2020 4:41pm
1/13/2020 4:41pm
dylanv21 wrote:
Need to get you a Hinson Clutch cover to compliment the full Hinson inside!
If Hinson made it I would buy it, but they dont make clutch covers for the CR125.. Sad
B1rdman93
Profile picture for user B1rdman93
Posts
101
Joined
8/22/2013
Location
Humble, TX US
B1rdman93 1/13/2020 6:53pm
1/13/2020 6:53pm
A little finer grit pad (white color) will smooth out swingarm and frame lines. Great job! Look forward to seeing the finished product.
bonseff
Profile picture for user bonseff
Posts
1275
Joined
3/29/2011
Location
Frisco, TX US
bonseff 1/13/2020 7:35pm
1/13/2020 7:35pm
Can you clue me in to the carb breather hose bucket? That is trick! Curious.
1
zac_k3
Profile picture for user zac_k3
Posts
578
Joined
3/5/2017
Location
TN US
zac_k3 1/14/2020 8:30am
1/14/2020 8:30am
anyway you could post a pic of the steel wool pads you used for the swing arm?
JohnCharlesC 1/14/2020 10:37pm
1/14/2020 10:37pm
What is the “white color” grit pad you are talking about?

This is what I used to clean my frame/swingarm and subframe. Along with mag cleaner.


1
JohnCharlesC 1/14/2020 10:52pm
1/14/2020 10:52pm
The carb canister keeps the hoses out of the way and does nothing else. I hear it adds roughly 4-5hp but I haven’t felt it Grinning *kidding*

The linkage is Factory Connection.

For now, I’m having too much fun riding my rm250 that I don’t have too much interest to ride the 125. I’ll never sell it so I don’t mind it just sitting there for me to look at Cool
2
zac_k3
Profile picture for user zac_k3
Posts
578
Joined
3/5/2017
Location
TN US
zac_k3 1/15/2020 12:29am
1/15/2020 12:29am
JohnCharlesC wrote:
What is the “white color” grit pad you are talking about? This is what I used to clean my frame/swingarm and subframe. Along with mag cleaner...
What is the “white color” grit pad you are talking about?

This is what I used to clean my frame/swingarm and subframe. Along with mag cleaner.


Awesome, thanks! Did you ever strip the anodizing off the swing arm or will the mag wheel cleaner and steel wool with the red pad give me this look? I just picked up a 96’ cr250 and the only cleaning the swing arm ever got was probably a car wash wand Sick
JohnCharlesC 1/15/2020 8:01am
1/15/2020 8:01am
That sounds pretty rough! My swing arm was already in pretty good shape so I didn’t strip the anodize. I first used water and soap to get the big dirt. Then lightly with the scuffing pad and then steel wool. I always scrubbed with the mag cleaner sprayed on (I think I used an overkill amount) and always in the direction of the grain. Also, only ever used microfiber clothes to clean and dry. Hope this helps and good luck with yours!
