Bent206 Bent206
1/13/2018 10:30 AM

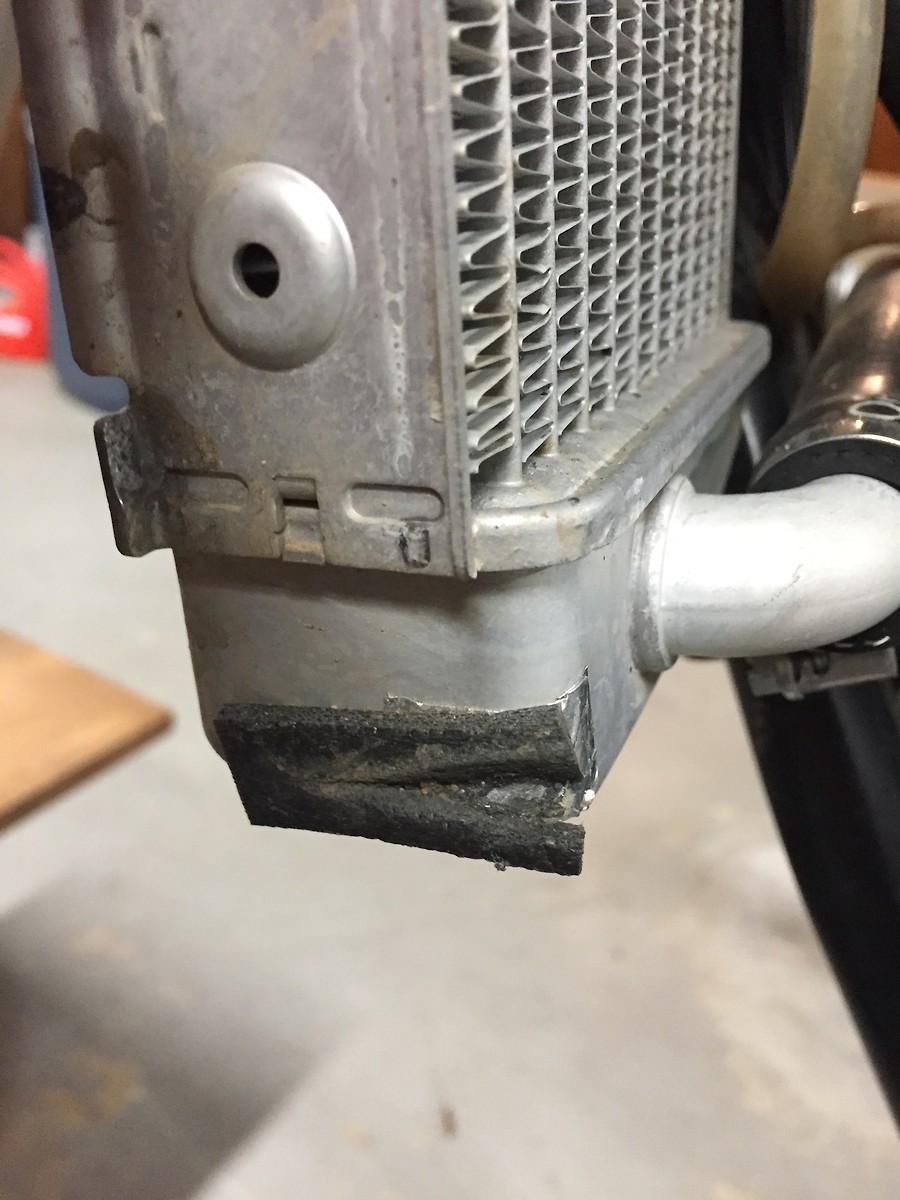

The shrouds on my 2016 KTM 150sx wearing a line in the aluminum radiator. I noticed it last season and put some metal tape & foam on the spot. That has worn through.
Has anyone else had this issue? What was your fix? I’m going to try glueing a rubber pad in this spot. I’d hate to see it wear through.Photo

| Quote
Acidreamer Acidreamer
1/13/2018 5:36 PM

My fix would be to remove plastic from the reenforcement part so it clears the radiator. Or add a washer or 2 between the radiator and the plastic where the bolt goes. Should give clearance.

2009 Kawasaki KX450F
2009 Kawasaki KX250F
2002 Suzuki GSXR 600

| Quote
Hondas4Life3 Hondas4Life3
1/13/2018 7:46 PM

Only true answer is to weld it. I agree with acid dreamer maybe some washers are needed for clearance. At least use rubber. It won't go through it you use thick enough stuff.

| Quote
CarlinoJoeVideo CarlinoJoeVideo
1/13/2018 10:06 PM

If it’s the plastic that’s wearing into it, can you just cut it back?

| Quote
KTM Two Stroke KTM Two Stroke
1/14/2018 2:48 AM

Had the same Problem on my 150 SX.
This Marks was very Deep
I put Liquid Metal over this Pressure Marks ,does not really look good
but it works

| Quote
KTM Two Stroke KTM Two Stroke
1/14/2018 2:55 AM

| Quote
KTM Two Stroke KTM Two Stroke
1/14/2018 2:55 AM

| Quote
Bent206 Bent206
1/15/2018 4:45 AM

Thanks for all the replies.
It's a tough spot to cut any plastic away or add spacers to the fasteners. It's the bottom edge of the shroud and it only contacts the radiator when it flexes (probably when cornering). If the shroud was longer it wouldn't even touch. You can just see the lower edge of the radiator in the attached picture.
I'm surprised more models don't have this issue since they all share the same plastic.


| Quote
Acidreamer Acidreamer
1/15/2018 5:04 AM

Is it cutting into the radiator? Your picture looks like its just cutting the foam. I have a hard time believing plastic is cutting alumimum.

2009 Kawasaki KX450F
2009 Kawasaki KX250F
2002 Suzuki GSXR 600

| Quote
CarlinoJoeVideo CarlinoJoeVideo
1/15/2018 7:11 AM
Acidreamer wrote:

Is it cutting into the ...more

It’s from the vibration, I’ve had it happen on my 125.

What if you heat the plastic slightly and bend it away?

| Quote
Acidreamer Acidreamer
1/15/2018 7:27 AM
Acidreamer wrote:

Is it cutting into the ...more

CarlinoJoeVideo wrote:

It’s from the vibration, I ...more

Yes thats an option.

2009 Kawasaki KX450F
2009 Kawasaki KX250F
2002 Suzuki GSXR 600

| Quote
Bent206 Bent206
1/15/2018 10:43 AM
Acidreamer wrote:

Is it cutting into the ...more

CarlinoJoeVideo wrote:

It’s from the vibration, I ...more

That's a good idea. I'll look at it tonight and see what can be done.

| Quote
Bent206 Bent206
1/15/2018 5:00 PM
Acidreamer wrote:

Is it cutting into the ...more

I cleaned the foam off and took another picture. You can see the wear mark in the aluminum and on the edge of the shroud. It’s happening on both sides of the bike.Photo


| Quote
CarlinoJoeVideo CarlinoJoeVideo
1/15/2018 7:27 PM
Acidreamer wrote:

Is it cutting into the ...more

Bent206 wrote:

I cleaned the foam off and ...more

Off topic, but where did you get those carbon engine mounts?

| Quote
Bent206 Bent206
1/16/2018 5:50 AM
Acidreamer wrote:

Is it cutting into the ...more

Bent206 wrote:

I cleaned the foam off and ...more

CarlinoJoeVideo wrote:

Off topic, but where did ...more

They are the stock mounts with "carbon look" background material. Nothing factory here! Ha Ha
We have a lot of extra time on our hands during the winter months in New England.
