Read my piston ..please

sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/17/2017 12:30pm Edited Date/Time 12/1/2018 6:43pm

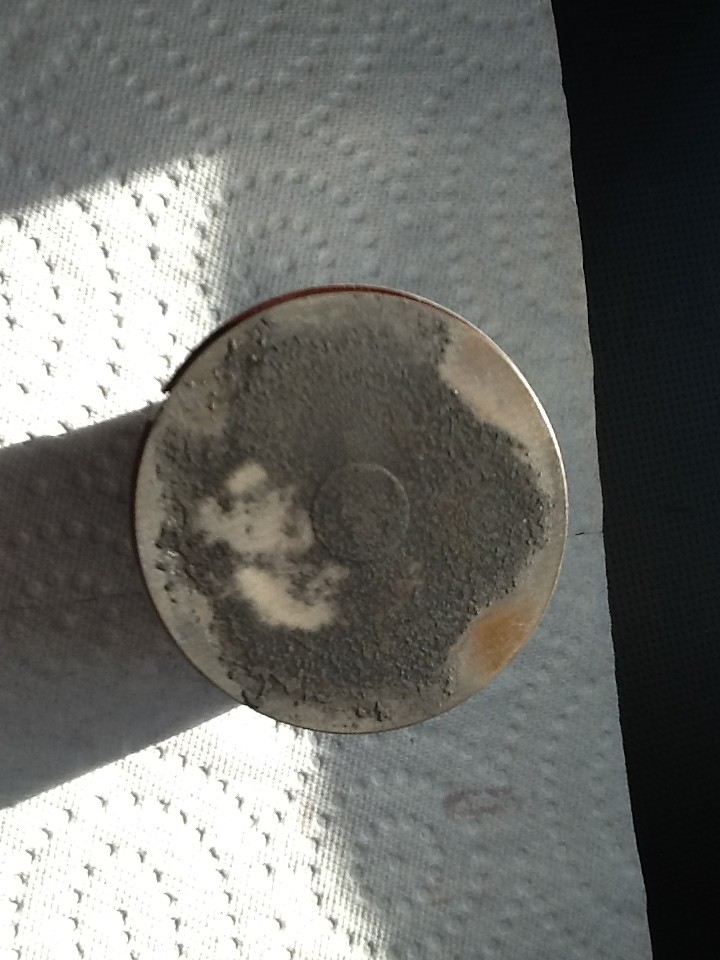

Out of my 96 Cr 250 I build 2 years ago. 12.0 hrs on top end. gearbox locked up, cracked left side case... Finally getting around to tearing into it. This is the piston....any thoughts? Cylinder has original plating, just stating to show some wear on the upper exhaust port, nothing showing on the piston exhaust side. Some funny carbon buildup on top of piston, looks like some of the head gasket material, gasket shows signs of coating coming off around the closest edge of top of cylinder. Bike was running great before the trans locked up...













|
rmoto003
Posts
926
Joined
2/26/2017
Location
Gulf Shores, AL US
12/17/2017 1:02pm
Cant read it, theres no words on it
1
BobPA
Posts
8023
Joined
10/31/2013
Location
PA US
12/17/2017 2:03pm
Looks fine to me. A touch on the rich side if anything. Do you have a picture of the plug?
Paw Paw 271
Posts
3640
Joined
4/3/2013
Location
Benton, LA US
12/17/2017 2:07pm
The underside of the piston shows that the clutch side crank seal was starting to leak. Piston look pretty good.
Cylinder may need replating.

Paw Paw

The Shop

sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/17/2017 2:26pm
BobPA wrote:
Looks fine to me. A touch on the rich side if anything. Do you have a picture of the plug?
Thanks for your input, I will take a photo of the plug, not sure if the plug reading Will be accurate, I had to idle back to the pits after the gearbox issue.

sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/17/2017 2:35pm
The underside of the piston shows that the clutch side crank seal was starting to leak. Piston look pretty good.
Cylinder may need replating.

Paw Paw
Thanks Paw Paw 271. I thought the underside looked pretty dark & oily...agree on the cylinder also, 1 little spot starting to chip, but can be felt with finger nail, only going to get worse...cases have to be split anyway due to a gearbox issue, so I will replace crank seals...have learned a lot on this site in the last 4-5 years, still learning how to read Pistons...thanks for your input...
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/17/2017 2:49pm
Photo of cracked case, curious as to what caused this. 12.0 hrs on the meter, after full rebuild of engine. I did notice when the bike was on a stand, spinning the rear wheel I would always hear a click or clink coming from the countershaft bearing, just assumed it was ok...



pete24
Posts
2733
Joined
10/20/2011
Location
Marlborough, MA US
12/17/2017 4:59pm
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on the piston top is carbon that lifted over time id say that thing sat for a while before you took it apart and the carbon lifteted off the piston if you disasembled it within a week of ridding it would just show a tad rich
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/17/2017 7:18pm
pete24 wrote:
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on...
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on the piston top is carbon that lifted over time id say that thing sat for a while before you took it apart and the carbon lifteted off the piston if you disasembled it within a week of ridding it would just show a tad rich
That's pretty good Pete, 10 of the 12 hrs on this bike were put on when I finished the build back in 2015. Fogged it, drained carb & did not ride it at all in 2016. This past August I prepped it & took it to a local practice track, after about 1 hr something in the gearbox let go & cracked the case...so I drained the fluids & parked it until today. The bike was running excellent before the gearbox went, I just thought the piston had some funny markings on it. It is a wiseco 1 ring flat top racers choice...this engine is a full Tom Morgan spec engine. I think I may use a dual ring piston this next time around.
David934
Posts
801
Joined
8/17/2016
Location
CZ
12/20/2017 12:16am
Nothing wrong with piston, looks fine to me. But cracked case, feel bad for you Sandman... not easy repair or you can still get new OEM one?
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/21/2017 2:01pm
David934 wrote:
Nothing wrong with piston, looks fine to me. But cracked case, feel bad for you Sandman... not easy repair or you can still get new OEM...
Nothing wrong with piston, looks fine to me. But cracked case, feel bad for you Sandman... not easy repair or you can still get new OEM one?
Oem cases are NLA....I bought a set of eBay cases that are in decent condition, had the left case dye glowed for cracks, came back good. Need to match cases and correct all surface imperfections from previous hackers, otherwise should be ok. What I"m concerned about is what caused the case to crack...a lot of the tranny parts are NLA...
40
Posts
263
Joined
12/26/2015
Location
WY US
12/22/2017 8:09am
Rich Roy should be able to weld that case for you. Text if you need his number.
Also, (believe it or not), JAF actually has a good TIG welder that they subcontract some work out to. He did a subframe for me last year that got gouged out from airbox and number plate rubbing. Came out terrific for not a lot of money. On par with Rich's work. Definitely a pleasant surprise.
The grayish color on your piston crown with chunk type deposits looks like leaded fuel deposits. I get the same thing with Sunoco Supreme leaded fuel. You're probably using C12
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/22/2017 8:33am
40 wrote:
Rich Roy should be able to weld that case for you. Text if you need his number. Also, (believe it or not), JAF actually has a...
Rich Roy should be able to weld that case for you. Text if you need his number.
Also, (believe it or not), JAF actually has a good TIG welder that they subcontract some work out to. He did a subframe for me last year that got gouged out from airbox and number plate rubbing. Came out terrific for not a lot of money. On par with Rich's work. Definitely a pleasant surprise.
The grayish color on your piston crown with chunk type deposits looks like leaded fuel deposits. I get the same thing with Sunoco Supreme leaded fuel. You're probably using C12
Brother....Sunoco 110 leaded from exit 12 ...Tom Morgan said sunoco 110 leaded or c12 is fine. 40:1 amsoil dominator. The deposits don't look that bad in person, the photo kind of magnifies them. I was able to find a decent set of used cases, The crack is longer than the photo shows, I figured welding in this area would compromise/warp the bearing pocket & clutch actuation arm area...seeing how these cases are getting very hard to find especially the left side, Maybe I will bring it to Rich to see what he thinks.I just pulled the engine out this week, have not split cases to see what broke, I"m thinking the shift drum or fork? Something bound up the cases, hence the crack. ..I have not been to Jaf in a few years... I also have been using a great weld/ fab shop out of Clifton park, Dick Hicks. Dick is an awesome guy, builds a lot of dirt track car chassis & fabs up all kinds of aluminum stuff. He often welds small things while I wait. He has been doing all my vintage frames also. I"m trying to wind down all this bike work, did not want to be splitting cases on this bike back apart after 12.0hrs...really need to focus on finding some land to purchase for riding, something with sand!
40
Posts
263
Joined
12/26/2015
Location
WY US
12/22/2017 12:33pm Edited Date/Time 12/22/2017 12:43pm
It's worth a shot at having that case welded. From the length of that crack, you'll probably have to do some machining to get the bearing pockets perfectly round and perpendicular afterward from the heat distortion, especially the clutch actuating arm pocket.
Can't blame you for wanting to wind down the amount of time spent working on bikes. Projects like these take a lot more time and effort than many people realize.

Your last sentence is important. I talked to the guy running ADK on the phone a few weeks ago. He says the Town of Ft Ann is continuing to give him a hard time. I would not be shocked to see him throw in the towel since he's already spent a lot of money on legal fights (sound familiar?). I didn't bother to ask him what his net profit was, but I would not be surprised if it's very low- if he even made money at all. After the devastating losses we've recently endured, this would be yet another big blow.

sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/25/2017 12:25pm
pete24 wrote:
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on...
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on the piston top is carbon that lifted over time id say that thing sat for a while before you took it apart and the carbon lifteted off the piston if you disasembled it within a week of ridding it would just show a tad rich
Pete, I sent you a pm... Let me know if you donot get it...I will send my email address..thanks...
pete24
Posts
2733
Joined
10/20/2011
Location
Marlborough, MA US
12/25/2017 4:01pm
just looked got nothing
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/25/2017 5:59pm Edited Date/Time 12/1/2018 6:33pm
pete24 wrote:
just looked got nothing
sandman768
Posts
5958
Joined
3/21/2014
Location
Saratoga Springs, NY US
12/1/2018 6:43pm
pete24 wrote:
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on...
looks to me like a wiseco piston , nothing wrong with it if the clearance is rite which i think your to loose, the flaking on the piston top is carbon that lifted over time id say that thing sat for a while before you took it apart and the carbon lifteted off the piston if you disasembled it within a week of ridding it would just show a tad rich
Just getting around to the top end on this bike, bottom end done....measuring everything, piston clearance is within spec...ring end gap not so much...measured .017-.018" ... Supposed to be .012"-.015"...I guess that explains the piston markings being setup too loose....I filed too much off the ring....where do you put the ring in the cylinder checking end gap? I put ring into cylinder from the top & pushed down with piston to square it up,then measured at 1 & 2 inches from the top...
